The Importance of SPI and AOI in PCB Manufacturing

Electronics manufacturing has quietly transformed from a process first into a technology first industry in the last decade. If you’re still looking at a Surface Mount Technology (SMT) line as a series of disconnected machines, you’ve already lost the race. We’ve reached a point where the components we’re placing - like the 01005 passives - are essentially the size of a grain of salt. At that scale, the human eye isn't an inspection tool; it’s a liability.

As a manufacturing engineer, I’ve seen the shift from manual "eyeballing" to the hyper-precise, data-heavy ecosystem of Industry 4.0. In this environment, Solder Paste Inspection (SPI) and Automated Optical Inspection (AOI) aren't just quality checkpoints. They are the nervous system of the smart factory. If they fail, the whole organism dies on the vine.

‍

The Printing Process: Where 70% of Your Problems Start

Ask any veteran on the floor where the "original sin" of a PCB happens, and they’ll point at the stencil printer. Industry data is blunt: roughly two-thirds of all SMT defects stem directly from how solder paste is slapped onto the board. We’re talking about volume, height, and registration.

This is why "Shift Left" isn't just a corporate buzzword; it’s a financial survival strategy. In the old days, you’d find a short after the reflow oven, swear under your breath, and then spend twenty minutes with a soldering iron trying to rework a board that was already half-charred. SPI changes the math. By parking a 3D SPI machine immediately after the printer, you catch the bridge before the expensive ICs are even picked from the reel.

‍

‍

What SPI actually looks for (and why you should care):

The machine calculates solder volume to ensure there’s enough alloy to actually make a joint, but not so much that it bleeds into the next pad. It measures height and area to confirm the stencil isn't clogged or worn out. Finally, it checks alignment. If your paste is offset by even a few microns, you’re looking at a graveyard of tombstoned components once that board hits the heat. The beauty of SPI is the "wipe and re-print" cycle. If the SPI says no, you clean the board and try again. The cost? A few cents of paste and three minutes of time. The alternative? Scrapping a $500 populated assembly.

‍

AOI: The Hall Monitor You Can’t Ignore

While SPI handles the "before," AOI manages the "during" and "after." Modern AOI uses high-resolution optics and multi-angle lighting to play a high-speed game of "spot the difference" against a CAD-based ideal or a "Golden Board."

Strategically, you have two choices for AOI placement, and if you're smart, you use both.

1. Pre-Reflow: This is where you catch the "pick and place" screw-ups. If a nozzle is worn and a component is skewed or missing, you fix it with a pair of tweezers in five seconds.

2. Post-Reflow: This is the final exam. Once the board has gone through the "pizza oven," the AOI looks for the nasty stuff: solder fillets that don't meet IPC-A-610 standards, unintended bridges, and those annoying "tombstones" where a component stands up on one end because of unbalanced wetting forces.

‍

Industry 4.0 and the "Handshake" Protocol

The real leap in 2026 isn't the cameras; it’s the Machine-to-Machine (M2M) communication. In a true smart factory, these machines aren't just shouting "Pass" or "Fail" into the void. They are talking to each other.

Imagine this: The SPI detects that the paste volume is slowly trending toward the lower limit. It doesn’t wait for a defect. It sends a data packet back to the stencil printer, telling it to adjust its pressure or trigger an automatic stencil wipe. That’s a closed-loop feedback system. You’re fixing the problem before the machine even makes a mistake.

Similarly, the AOI at the end of the line can "handshake" with the pick-and-place machines. If it sees a recurring 5-degree tilt on a specific capacitor, it flags the mounter to check nozzle #4 or recalibrate the feeder. This isn't "inspection" - it’s proactive manufacturing.

‍

Killing the "False Call" Monster with AI

The biggest headache with traditional AOI has always been the "False Call." You know the drill: the machine flags a board as defective because a shadow looked weird or a component from a different vendor has a slightly different shade of blue. This forces an operator to sit there clicking "Accept" all day, which leads to "button-pusher fatigue" and, eventually, a real defect slipping through.

This is where actual Machine Learning earns its keep. We’re using deep learning to filter the noise.

• Contextual Logic: AI can distinguish between a harmless cosmetic variance and a functional defect that will cause a field failure.

• Autonomous Programming: In the past, setting up a new board on an AOI took a full shift of manual "thresholding." Now, AI analyzes the CAD file and learns the board in under an hour.

• Predictive Maintenance: By tracking the vibration and thermal drift of the sensors, the system tells us when a motor is about to die before the line goes down.

‍‍

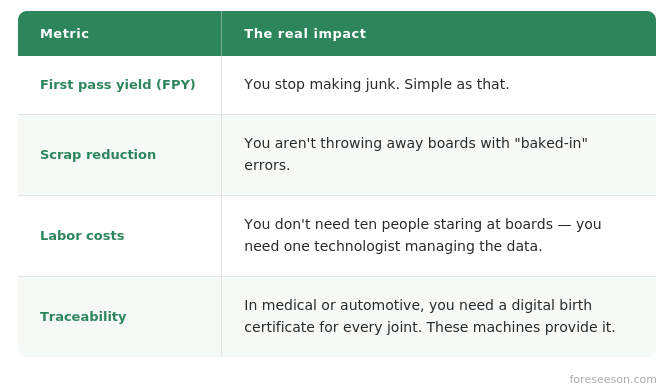

The Hard Truth About ROI

For the suits in the front office, this always comes down to the bottom line. But let’s look at the actual Return on Investment through an engineering lens:

The Catch: It’s Not All Magic

I won’t lie to you - integrating this stuff is a nightmare if you aren't prepared.

• Data Overload: These machines spit out terabytes of data. If your IT infrastructure is still running on 2015 standards, your network will choke.

• The Skill Gap: Your operators can't just be operators anymore. They need to understand the logic behind the algorithms. We need "hardware-software hybrids" who can troubleshoot a machine-learning drift as easily as a mechanical jam.

• Sticker Shock: This gear isn't cheap. But compare the CapEx to the cost of a single product recall in the medical field. The equipment usually pays for itself within eighteen months.

‍

Final Word: Move or Get Out of the Way

We are heading toward "Lights-Out" Manufacturing - factories that run themselves. In that world, SPI and AOI are the eyes and the brain of the operation. If you’re still treating inspection as a "final check" rather than a continuous feedback loop, your facility is a dinosaur. In 2026, quality isn't something you check for at the end; it’s something you build into the data from the very first micron of paste.

‍
